Scale up and efficient bioethanol production involving recombinant cellulase (Glycoside hydrolase family 5) from Clostridium thermocellum
Sustainable Chemical Processes volume 1, Article number: 19 (2013)
Lignocellulose degrading fungal enzymes have been in use at industrial level for more than three decades. However, the main drawback is the high cost of the commercially available Trichoderma reesei cellulolytic enzymes.
The hydrolytic performance of a novel Clostridium thermocellum cellulolytic recombinant cellulase expressed in Escherichia coli cells was compared with the naturally isolated cellulases in different modes of fermentation trials using steam explosion pretreated thatch grass and Zymomonas mobilis. Fourier transform infrared (FT-IR) spectroscopic analysis confirmed the efficiency of steam explosion pretreatment in significant release of free glucose moiety from complex lignocellulosic thatch grass. The recombinant GH5 cellulase with 1% (w v-1) substrate and Z. mobilis in shake flask separate hydrolysis and fermentation (SHF) and simultaneous saccharification and fermentation (SSF) trials demonstrated highest ethanol titre (0.99 g L-1, 1.2 g L-1) as compared to Bacillus subtilis (0.51 g L-1, 0.72 g L-1) and Trichoderma reesei (0.67 g L-1, 0.94 g L-1). A 5% (w v-1) substrate with recombinant enzyme in shake flask SSF resulted in a 7 fold increment of ethanol titre (8.8 g L-1). The subsequent scale up in a 2 L bioreactor with 1 L working volume yielded 16.13 g L-1 ethanol titre implying a 2 fold upturn. The rotary evaporator based product recovery from bioreactor contributed 94.4 (%, v v-1) pure ethanol with purification process efficiency of 22.2%.
The saccharification of steam exploded thatch grass (Hyparrhenia rufa) by recombinant cellulase (GH5) along with Z. mobilis in bioethanol production was studied for the first time. The effective pretreatment released substantial hexose sugars from cellulose as confirmed by FT-IR studies. In contrast to two modes of fermentation, SSF processes utilizing recombinant C. thermocellum enzymes have the capability of yielding a value-added product, bioethanol with the curtailment of the production costs in industry.
Fast depletion of fossil fuel reserves and increasing problem of greenhouse gas effects has stimulated a worldwide interest in alternative, non petroleum-based sources of energy. The use of ethanol as an alternative fuel derived by fermentation process will significantly reduce the consumption of crude oil and eventually the net carbon dioxide emission. The utilization of cheaper substrates such as lignocelluloses and other renewable biomasses would make bio-ethanol more competitive than fossil fuels . Effective pretreatment and efficient hydrolysis of lignocellulosic substrates is the rate limiting step towards techno-economical feasibility of lignocellulosic ethanol fermentation. Electron microscopy and fourier transform infrared (FT-IR) spectroscopy have been used for the analysis of structural and morphological modifications in the biomass after pretreatment [2–5]. The hydrolytic activity of cellulases with the maximum release of utilizable sugars is a crucial factor in bioethanol production. With respect to various pretreatments, the utility of enzymatic hydrolysis with the aid of microbes has many advantages such as less usage of energy, no release of toxic chemicals and diminished generation of products lethal to the environment as well as mankind. The prime hindrance in the usage of commercial fungal enzymes is, lies in its high cost. Also, there is absence of prominent β-glucosidase activity in most of the readily available enzymatic pools, directed towards an efficient saccharification process . Bacterial cellulases are also potential candidates as they can withstand harsh conditions such as high temperature, sugar, salt and ethanol concentrations during lignocellulose degradation and can metabolize wide range of sugars improving the process of ethanol production . Bacillus subtilis (AS3) produce cellulases which are alkaline, thermostable, show wide range of pH stability and substrate specificity for both soluble and crystalline substrates such as avicel . The optimum temperature for cellulase activity of B. subtilis (AS3) is close to that of recombinant and fungal cellulase . The cellulosome of Clostridium thermocellum is known to have one of the highest rates of cellulose utilization till date reported, that displays 50-fold higher specific activity than the corresponding Trichoderma reesei system against crystalline cellulose . The recombinant cellulase isolated from E. coli BL21 cells transformed with full length gene CtLic26A-GH5-CBM11 from Clostridium thermocellum was shown to have better cellulolytic activity in an efficient SSF process using Jamun (Syzygium cumini) leafy biomass as the substrate .
In simultaneous saccharification and fermentation (SSF) process, the enzymatic hydrolysis of cellulose and the fermentation of monomeric sugars are performed in a single step, making the process a beneficial alternative to separate hydrolysis and fermentation (SHF) . The key enzymes for ethanol fermentation: alcohol dehydrogenase and pyruvate decarboxylase was reported to be best expressed in Zymomonas mobilis[12, 13]. As a consequence, in recent years, research is focused on Z. mobilis, as promising alternative ethanol producer because of its high glucose uptake and high ethanol tolerance. The rotary vaccum evaporation, distillation and pervaporation are frequently used for retrieval of various fermentation products .
In the present study, the hydrolytic performance of a novel recombinant cellulolytic cellulase was compared with the performance of fungal and naturally isolated bacterial cellulase employing various modes of lignocellulosic ethanol formation by Z. mobilis from steam exploded thatch grass (H. rufa) for the first time. The breakdown of structural carbohydrates by steam explosion was assessed by Fourier transform infrared (FT-IR) spectroscopy studies. The hydrolytic efficiency of various cellulolytic enzymes was assessed by obtaining dynamic profile of growth of Z. mobilis as fermentative microbe, release of reducing sugar, ethanol titre and specific activity of the enzymes in several SHF and SSF combinations at shake flask level. Further, shake flask SSF experiment with increased substrate concentration was scaled up to a laboratory scale bioreactor under controlled process parameters of pH, temperature, aeration and agitation following ethanol recovery.
Results and discussion
Structural carbohydrates determination
Increment in the efficiency of hydrolysis is the main purpose of using pretreatment methods for lignocellulosic substrates. Steam explosion pretreatment was employed for delignification to increase the efficiency of hydrolysis of lignocellulosic biomass, thatch grass. The carbohydrate analysis of untreated thatch grass (Hyparrhenia rufa) exhibited (w w-1) cellulose (45.07%), hemicellulose (29.06%) and lignin (17.43%) whereas pretreated substrate showed cellulose (41.02%), hemicellulose (28.14%) and lignin (14.19%). Various lignocellulosic biomasses such as bermudagrass, reed and rapeseed were reported to have cellulose content of 27% - 49% and lignin content of 18% - 24% , respectively which are similar to the cellulose content of thatch grass substrate used in the present study. The abrupt depressurization in the pretreatment helped to release maximum amount of reducing sugars in least pretreatment time. The FESEM images for steam exploded thatch grass showed the increment in porosity and structural destabilization of the lignocellulosic complex as compared to the untreated thatch grass sample (Figure 1A and 1B). The accessibility of the enzyme to the cellulosic contents of the substrate was increased by change in structure and increase in porosity showing an effective pretreatment process in biofuel production from lignocellulosic leafy residues. In the preliminary experiments, an ethanol titre of 0.92 g L-1 was obtained with untreated thatch grass as compared to the higher titre value of 1.2 g L-1 with steam exploded thatch grass. Thus, steam explosion proved to be an efficient pretreatment method as shown by the composition analysis of the sugars present in the substrate and ethanol titre before and after the pretreatment strategy.
FT-IR spectroscopy analysis
The FT-IR spectral analysis of both untreated and pretreated thatch grass samples were carried out (Figure 2). The H-bond transmittance of OH stretching supposed to arise from the glycosidic bonds of cellulose or hydroxyphenyl, guaiacyl and syringyl groups of lignin released from pretreated thatch grass was shifted to higher wave number from 3416 cm-1 to 3426 cm-1 in the treated sample (Figure 2). The analysis of carbohydrate specific fingerprint of FT-IR spectra obtained is depicted in Table 1. The shift was due to change of hydrogen bonding energy in the system of internal and intermolecular interactions . Two independent peaks at 2967 and 2900 cm-1 appeared in pretreated sample due to C-H stretching of aliphatic structures as also reported by Cao and Tang . In contrast, a less pronounced single peak at 2934 cm-1 was observed in the untreated sample. A little lignin component was detected after pretreatment. The band at 1628 cm-1 appeared due to the aromatic ring stretch of lignin component, a similar analysis was reported earlier . 1596 cm-1 band appeared for aromatic skeletal vibration plus C = O stretch. A band at 1160 cm-1 was due to the anti-symmetric bridge stretching of C–O–C groups in cellulose and hemicellulose. The shift of 1383 cm-1 peak of untreated sample to 1318 cm-1 in pretreated sample could be attributed to CH2-wagging vibrations in cellulose and hemicellulose. Similar peaks have been observed while analyzing the FT-IR spectra of cellulose from eucalyptus pulp by enzymatic hydrolysis . Several research groups proposed different peak pairs for crystalline and amorphous cellulose viz., 1430 cm-1 for crystalline and 893 cm-1 for amorphous cellulose . In our present study, the pretreated thatch grass displayed a 1430 cm-1 peak which was due to crystalline cellulose but no peak for amorphous form was observed. A more contrasting peak was observed at lower wavenumber 1033 cm-1 as compared to untreated sample at 1060 cm-1 which arose due to C - O stretch vibration of glucose from cellulose hydrolysis in the pretreated sample. Glucose is reported to give maximum peak intensity at 1033 cm-1 due to C-O stretch vibration . Therefore, the steam explosion pretreatment process was significant in the release of free sugars such as glucose moiety from thatch grass for cellulosic fermentation to ethanol.
SHF at shake flask level
The hexose utilizing Zymomonas mobilis was employed as an alternative ethanol producer over conventional microbes in SHF trials with 1% (w v-1) steam explosion pretreated thatch grass. Z. mobilis is reported to possess the key enzymes, alcohol dehydrogenase and pyruvate decarboxylase assisting in high sugar uptake with improved ethanol yield, enhanced ethanol tolerance and lesser biomass production . The first SHF experiment with B. subtilis cellulase and Z. mobilis contributed a reducing sugar concentration of 0.84 g L-1, an ethanol titre and yield of 0.51 g L-1 and 0.051 g of ethanol g of substrate-1 respectively (Table 2). The second SHF trial with T. reesei cellulase and Z. mobilis offered reducing sugar (0.98 g L-1), ethanol titre of 0.67 g L-1 with a yield co-efficient of 0.067 g of ethanol g of substrate-1 (Table 2). Interestingly, the final SHF test with crude recombinant cellulase (GH5) and Z. mobilis provided a maximum ethanol concentration of 0.99 g L-1, reducing sugar content of 1.21 g L-1 and an improved yield co-efficient of 0.099 g of ethanol g of substrate-1 (Table 2). Being a part of C. thermocellum cellulosome, the recombinant GH5 cellulase expressed in E. coli cells had effective cellulose conversion. This was envisaged from released reducing sugar by GH5 cellulase giving an improved ethanol titre as compared to naturally isolated B. subtilis and T. reesei cellulases (Table 2).
SSF at shake flask level

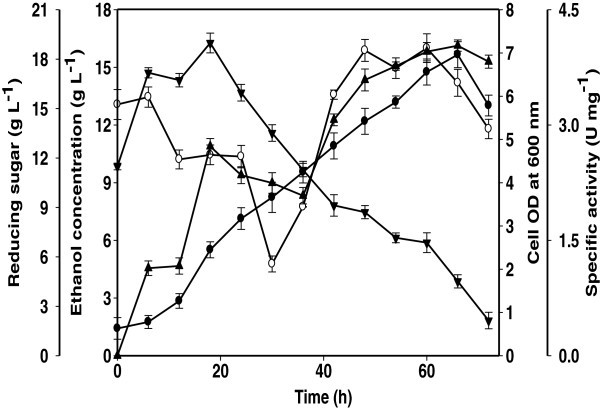

In the first SSF combination involving B. subtilis cellulase and Z. mobilis using thatch grass, the dynamic profile showed an increment of cell OD in a sigmoidal manner attaining a maximum of 0.76 at 60 h of fermentation. There was a marginal decrease in reducing sugar reserve albeit no production of ethanol after 24 h of fermentation owing to its utilization for growth and metabolism by Zymomonas. After 24 h, a gradual increase in ethanol concentration was observed over the incubation period with simultaneous decrease in total sugar (Figure 3). The release of reducing sugars of 1.10 g L-1 and ethanol concentration of 0.72 g L-1 was obtained after 72 h of fermentation (Table 3, Figure 3). An ethanol yield (g of ethanol g of substrate-1) of 0.072 was obtained. The second SSF combination involving T. reesei cellulase and Z. mobilis yielded reducing sugars of 1.10 g L-1, ethanol concentration of 0.94 g L-1 and ethanol yield (g of ethanol g of substrate-1) of 0.094 (Table 3).
In case of final SSF combination involving recombinant cellulase (GH5) and Zymomonas mobilis for fermentation (Figure 4), Z. mobilis exhibited two distinct growth phases implying diauxic growth kinetics. The first growth phase corresponded to an initial 18 h of fermentation with an average specific growth rate (μ m ) of 0.4 h-1. During this phase, the utilization of sugar produced from the hydrolysis of substrate by the enzyme was used by the micro-organism for its growth. The second distinct growth phase was observed during 48–60 h of fermentation with a maximum specific growth rate (μ m ) of 0.4 h-1. The biomass production reached its peak value (A600nm 0.8) at 60 h of fermentation, and the growth rate remained constant for rest of the fermentation process, indicating achievement of senescence. The ethanol formation was proportional to the increase in biomass. A maximum ethanol titre of 1.2 g L-1 was achieved (Table 3, Figure 4) at 60 h of fermentation and after that it remained constant. The ethanol yield (g of ethanol g of substrate-1) obtained was 0.120 (Table 3). Interestingly, the dynamic profile of reducing sugar showed a sinusoidal behaviour which can be attributed to a delicate balance between the rate of saccharification for release of reducing sugar and the rate of its subsequent utilization for growth and ethanol formation. It is important to note that the increase in reducing sugar concentration (1.45 g L-1) was found to be concomitant with decrease in specific activity of enzyme and vice-versa. The ethanol titre (g L-1) obtained from various SSF experiments involving pretreated thatch grass clearly proved SSF process better over SHF with enhanced ethanol yields by eliminating end product inhibition and excluding separate reactors’ obligation. Similar findings are reported in literature . The bioreactor scale up was employed for the best SSF combination involving recombinant cellulase (GH5) and Z. mobilis in terms of reducing sugar concentration and ethanol value.
SSF involving recombinant cellulase (GH5) and Z. mobilis using 5% (w v-1) thatch grass in shake flask and bioreactor
It is well known that a rise in substrate concentration along with enzyme loadings and inoculum size has a significant acceleration in ethanol titre. Accordingly, the shake flask batch SSF was performed using a substrate concentration of 5% (w v-1) alongwith recombinant cellulase (GH5) and Z. mobilis. The recombinant cellulase (GH5) and Z. mobilis yielded ethanol concentration of 8.79 g L-1 with a maximum released reducing sugar of 12.1 g L-1 (Table 3). The yield of ethanol (g of ethanol g of substrate-1) obtained was 0.180 (Table 3).
In general, it is possible to tightly regulate the important process parameters in an automated bioreactor. It is important to note that the parameters such as pH and aeration will have significant effect on fermentation dynamics and hence, final ethanol titre. To that end, the SSF was further scaled up in the bioreactor. Unlike shake flask, a single growth phase was observed instead of diauxic growth. The cell OD initially remained low followed by an exponential increase to a maximum value of (A600nm 7.0) at 66 h of fermentation (Figure 5). The dynamic profile of reducing sugar showed a substantial accumulation in the initial phase of fermentation (18.98 g L-1 at 18 h), followed by a sharp decrease in concentration concomitant with exponential phase of growth (Table 3, Figure 5). The saccharification products released from complex polysaccharide content of thatch grass in bioreactor SSF were detected by HPAEC-PAD by comparing the retention time of standard monosaccharide sugars (Figures 6A, B, C, D, E and F). The 0 h HPAEC profile of monosaccharides depicted small amount of xylose that might have been released along with glucose during steam explosion pretreatment (Figure 6B). Surprisingly, the same amount of xylose was revealed in the later stages of SSF as Z. mobilis utilizes strictly hexose sugars (Figures 6C, D, E and F). The 18 h HPAEC profile exhibited considerable amount of glucose released by recombinant C. thermocellum cellulase (GH5) (Figure 6C). The HPAEC profile sensed a gradual decrease in glucose at 36 h (Figure 6D) and 54 h (Figure 6E) due to its utilization by Z. mobilis. Lastly, the 72 h HPAEC pattern presented negligible amount of glucose owing to its consumption by Z. mobilis for growth, maintenance and ethanol formation (Figure 6F). It is to be noted that rate of ethanol formation (16.13 g L-1) was found to be proportional with the rate of substrate utilization and cell population growth (Table 3, Figure 5). The ethanol yield obtained was 0.320 (g of ethanol g of substrate-1) (Table 3). Interestingly, the inverse relationship between reducing sugar concentration and specific activity of the enzyme was found to be more prominent in bioreactor as compared to shake flask level SSF.
The SSF profiles of various combinations implicated an interesting relation between the rate of saccharification, rate of sugar utilization and the rate of ethanol formation. A sinusoidal behavior was represented in most cases of the dynamic profile of reducing sugar depicting a balance between the rate of saccharification and utilization of sugar for growth and ethanol fermentation. In some cases, specifically, in bioreactor SSF, the accumulation of reducing sugar in the broth repressed activity of cellulase enzyme which in turn resulted in decreased rate of hydrolysis concluding the inverse relationship between the enzyme activity and the reducing sugar content. A glucose concentration of 20 g L-1 is reported to have 75% repressive effect on the cellulase activity . Thus, the sinusoidal behaviour observed in all batch SSF experiments (Figures 3, 4 and 5) may be attributed to the combined effect of decrease of saccharification and in turn its subsequent utilization for growth and ethanol production. On the other hand, a sugar concentration below a threshold level decreased the repressive effect on cellulase activity. An interesting behaviour in our batch SSF experiments between depletion of sugars without any further rise in ethanol concentration indicated the utilization of sugars for maintenance and survival of the fermentative microbes (Figures 3, 4 and 5).
As compared to other fermentative microbes, Z. mobilis have shown better performance due to its potential of having high ethanol tolerance. In the present study, employing recombinant cellulase (GH5), in the ethanol titre (1.20 g L-1) (Table 3), a 1.7-fold augmentation was noticed as compared to B. subtilis cellulase (0.72 g L-1) (Table 3) and 1.3-fold escalation as compared to T. reesei cellulase (0.94 g L-1) (Table 3) with Z. mobilis as the fermentative organism. This proves that the efficiency of thermostable recombinant C. thermocellum cellulases is higher over B. subtilis and T. reesei cellulases, due to having highest rates of cellulose utilization . The best SSF combination of recombinant cellulase (GH5) and Z. mobilis using 5% (w v-1) thatch grass at shake flask level yielded a 7.3-fold rise in ethanol titre and 1.5-fold higher ethanol yield as compared to 1% (w v-1) substrate concentration. Moreover, when the shake flask SSF using 5% (w v-1) thatch grass was scaled up in lab scale bioreactor a 2-fold upsurge both in ethanol titre and yield were obtained (Table 3). The controlled conditions of various parameters like aeration, pH in the bioreactor had an added advantage on the growth and ethanol titre . An increase in the substrate concentration along with enzyme loadings and inoculum size had resulted in relative acceleration in ethanol titre and yield .
Ethanol recovery with determination of purification process efficiency
The crude ethanol obtained in SSF studies employing recombinant hydrolytic cellulase (GH5) and Z. mobilis using 5% (w v-1) steam explosion pretreated thatch grass at bioreactor level was 20.44 mL L-1 i.e., 16.13 g L-1. The vacuum evaporation of fermentation broth (1 L) with crude ethanol yielded 4.80 mL of distillate comprising 4.53 mL i.e., 94.4% (v v-1) of pure ethanol. Lastly, the purification process efficiency was found out to be 22.2%. The residual ethanol in the broth obtained with the water condensates can be completely recuperated by numerous distillation steps as encompassed in large scale operations .
The ethanol titre and ethanol yield was found to be comparable with other reported values in the literatures. An ethanol concentration of 2.2 g L-1 was obtained from 1% (w w-1) of banana waste using a coculture of Clostridium thermosaccharolyticum HG8 and Thermoanaerobacter ethanolicus ATCC 31937 . An ethanol titre of 62.7 g L-1 ethanol using 19% (w w-1) dry matter corncorb and commercial cellulolytic enzymes in bioreactor has been reported . A SSF experiment involving 30% (w w-1) solid content with commercial cellulase enzyme and Zymomonas mobilis as fermentative organism gave an ethanol concentration of 60 g L-1. One percent (w v-1) Mangifera indica leaves with recombinant C. thermocellum GH43 hemicellulase and Candida shehatae yielded an ethanol titre of 2.1 g L-1. The leafy biomass of mango contributed an ethanol titre of 12.3 g L-1 using naturally isolated cellulase and recombinant enzymes from C. thermocellum. Z. mobilis upon fermentation of 20% (w v-1) sugarcane bagasse resulted in an ethanol titre of 6.24 g L-1 and yield of 79% with productivity of 3.04 g L-1 h-1.
This illustrates that in our SSF studies, a better choice of bioethanol production was provided by economically feasible recombinant (GH5) cellulase along with Zymomonas mobilis.
Effective steam explosion pretreatment released substantial hexose sugars from lignocellulosic thatch grass as confirmed by FT-IR studies. The recombinant GH5 cellulase with 1% (w v-1) substrate and Z. mobilis in shake flask SHF and SSF trials demonstrated highest ethanol titre as compared to Bacillus subtilis and Trichoderma reesei cellulases. A 5% (w v-1) substrate with recombinant enzyme in shake flask SSF resulted in a 7-fold increment of ethanol titre. The subsequent scale up in a 2 L bioreactor with 1 L working volume yielded a 2-fold upturn both in ethanol titre and yield. The rotary evaporator based product recovery from bioreactor contributed 94.4 (%, v v-1) pure ethanol with purification process efficiency of 22.2%. SSF processes utilizing recombinant C. thermocellum enzymes have the prospective of yielding a value-added product, bioethanol with the curtailment of the production costs in industry.
Reagents and substrate
Ampicillin and components for LB and GYE media and other reagents of analytical grade were procured from Merck and Himedia laboratories (India). Carboxymethylcellulose (low viscosity, 50–200 cP) was purchased from Sigma Aldrich (St. Louis, USA). Lignocellulosic biomass thatch grass (Hyparrhenia rufa) collected from Guwahati, Assam, India was used as the substrate for SSF study. The substrate was pretreated by steam explosion for improved hydrolysis . One gram of the powdered cellulosic substrate was taken in 250 mL Erlenmeyer flask. The mixture was autoclaved at 15 psi and 121°C for 1 h followed by sudden steam depressurization by fully opening the steam exhaust valve.
Microorganisms and culturing conditions
Trichoderma reesei (MTCC 164) and Zymomonas mobilis (MTCC 2427) were procured from IMTECH, Chandigarh, India. Bacillus subtilis AS3 (Genebank accession No. EU754025) isolated from cowdung was a gift from Professor Dinesh Goyal, Thapar University, Patiala, India. The recombinant family 5 glycoside hydrolase (GH5) gene was cloned and expressed earlier by the corresponding author AG as reported elsewhere  and is now also commercially available with NZY Tech, Lda, Lisbon, Portugal.
One millilitre of T. reesei spore suspension (5 × 107 spores mL-1) was inoculated to 100 mL of Potato Dextrose Broth and incubated at 28°C, 120 rpm for 48 h. The culture broth was then centrifuged at 10,000g for 15 min and the cell free supernatant obtained was filtered twice and 1 mL of the filtrate was used as the crude enzyme for SSF experiment. The inoculum of Z. mobilis was prepared by growing the strain in the medium containing (g 100 mL-1): glucose 2; yeast extract 1; KH2PO4 0.2. The pH was adjusted to 6 and incubated at 30°C, 120 rpm for 48 h. 1 mL of actively growing aerobic culture (2.1 × 106 cells mL-1) was transferred to the fermentation media. B. subtilis inoculum was prepared by transferring a loop full of culture from nutrient agar slant in 5 mL of nutrient broth and incubated for 18 h at 37°C and 180 rpm. 2% (v v-1) of the fresh inoculum was transferred to 50 mL of the optimised medium containing (g L-1): CMC, 18; peptone, 8; yeast extract, 5; K2HPO4, 1; MgSO4.7H2O, 0.25; and NaCl, 5  in 250 mL Erlenmeyer flask and incubated at 37°C for 48 h followed by centrifugation at 10,000g for 15 min at 4°C. The cell free supernatant was used as the crude enzyme for saccharification. Recombinant E. coli BL21 cells transformed with plasmid containing Glycoside hydrolase family 5 gene from Clostridium thermocellum inserted in an expression vector pET21a  was used as source of recombinant cellulase enzyme. These cells are maintained in LB medium with 100 μg mL-1 ampicillin as glycerol stock at -80°C in our laboratory at IIT Guwahati.
Production of recombinant cellulase (GH5)
1% (v v-1) of the E. coli Bl-21 cells harbouring recombinant cellulase (GH5) from glycerol stock were inoculated into 5 mL of LB medium containing 100 μg mL-1 ampicillin and incubated at 37°C for 16 h at 180 rpm. 1% (v v-1) of the culture inoculum was transferred to 250 mL of LB medium in 500 mL flask containing 100 μg mL-1 ampicillin and was incubated at 37°C, 180 rpm till the culture reached to mid-exponential phase (A600 0.6). Isopropyl-β-D-thiogalactopyranoside (IPTG) was added to this mid-exponential phase culture to a final concentration of 1 mM followed by further 8 h incubation for protein induction. The cells were collected by centrifugation (9,000g, 4°C, 15 min) and were resuspended in 50 mM sodium acetate buffer adjusted to pH 5.2. The recombinant enzyme was expressed as soluble protein. The cell extract containing soluble enzyme was sonicated in an ice bath for 15 min followed by centrifugation (13,000g, 4°C, 30 min). The supernatant was used as the enzyme source for SSF experiment.
Separate hydrolysis and fermentation (SHF) at shake flask level
Three individual batch separate hydrolysis and fermentation (SHF) experiments were carried out at shake flask level employing 1 g of steam explosion pretreated thatch grass (Hyparrhenia rufa). The fermentation medium contained 100 mL of 20 mM sodium acetate buffer (pH 4.3) in three separate 250 mL Erlenmeyer flasks. One millilitre of B. subtilis cellulase (3.3 U mg-1, 0.5 mg mL-1), 0.3 mL of crude T. reesei cellulase (12.9 U mg-1, 0.82 mg mL-1) and 0.6 mL of crude recombinant cellulase (GH5) (5.6 U mg-1, 0.44 mg mL-1) for saccharification were added to each of the three flasks. The saccharification of the thatch grass was carried out at 50°C and 120 rpm for 36 h. Then, centrifugation of each medium was performed at 5,476g, 25°C for 15 min and the supernatant was collected separately. The supernatant was supplemented with (0.1%, w v-1) each of yeast extract and peptone and used as fermentation medium separately for each of the SHF trials. One millilitre of Z. mobilis inoculum (2.1 × 106 cells mL-1) was inoculated to each of the flasks containing the fermentation medium. The fermentation was carried out for 3 days at 30°C and 120 rpm. The SHF parameters viz., cell OD at 600 nm, ethanol concentration (g L-1), reducing sugar (g L-1) and specific activities (U mg-1) were estimated with collection of samples (2 mL) at every 6 h interval.
Simultaneous saccharification and fermentation (SSF) at shake flask level
In the first step, the performance of three different hydrolytic enzymes was compared from SSF experiments by growing Z. mobilis on steam exploded thatch grass as substrate. The comparative SSF studies were performed using 1% (w v-1) steam exploded thatch grass in a 250 mL Erlenmeyer flask at 30°C and 120 rpm till 72 h with sample collection at every 6 h. 1 mL of Z. mobilis (2.1 × 106 cells mL-1) was employed for bioethanol production. The fermentation media containing 100 mL of 20 mM sodium acetate buffer and supplemented with 0.1 % (w v-1) each of yeast extract and peptone was maintained at an initial pH of 4.3 in each batch of SSF. The first SSF combination comprised of 1 mL of B. subtilis cellulase (3.3 U mg-1, 0.5 mg mL-1) for hydrolysis and 1 mL of Z. mobilis for fermentation. The next combination involved 0.3 mL of crude T. reesei cellulase (12.9 U mg-1, 0.82 mg mL-1) as the hydrolytic enzyme along with 1 mL of Z. mobilis as the fermentative organism. The final combination involved 0.6 mL of crude recombinant cellulase (GH5) (5.6 U mg-1, 0.44 mg mL-1) for saccharification alongwith 1 mL of Z. mobilis inoculum as the bioethanol producer. The dynamic profile of the SSF was obtained by estimating various fermentation parameters like cell OD, ethanol titre (g L-1), reducing sugar concentration (g L-1) and specific activity of enzyme (U mg-1).
SSF experiment involving recombinant cellulase (GH5) and Z. mobilis with 5% (w v-1) substrate in shake flask and bioreactor
In the next step, a higher substrate concentration 5% (w v-1) of pretreated thatch grass was used for best SSF combination involving recombinant cellulase (GH5) and Z. mobilis. 5 mL of crude recombinant cellulase (GH5) (5.6 U mg-1, 0.44 mg mL-1) for hydrolysis and 5 mL of Z. mobilis inoculum (2.1 × 106 cells mL-1) as the fermentative microbe were used for batch SSF at shake flask level. The fermentation medium containing 100 mL of 20 mM sodium acetate buffer and supplemented with 0.1% (w v-1) each of yeast extract and peptone was maintained at an initial pH of 4.3. Finally, bioethanol production in batch mode was scaled up in a 2 L capacity bioreactor (Applicon, Bio Console ADI 1025) with a working volume of 1 L sodium acetate buffer (20 mM, pH 4.3) supplemented with yeast extract (0.1%, w v-1) and peptone (0.1%, w v-1). 5% (w v-1) of steam exploded thatch grass was used as substrate for SSF studies. 50 mL of isolated crude recombinant cellulase (GH5) (5.6 U mg-1, 0.44 mg mL-1) was used for saccharification alongwith 50 mL of Z. mobilis inoculum (2.1 × 106 cells mL-1) for bioethanol production. The SSF parameters of 120 rpm agitation, temperature of 30°C and 1 vvm aeration rate were maintained by a mass flow controller. The cell growth was monitored by a spectrophotometer (Varian, Cary 50, Australia) at 600 nm. The online process parameters like temperature (°C), pH and stirring rate (rpm) were recorded for every 1 min. The various offline parameters such as cell OD, reducing sugar (g L-1), specific activity (U mg-1) and ethanol content (g L-1) were obtained at every sampling time point of 6 h. The trends of pH values are qualitative indicators of phenomenon like organic acid production or consumption. The pH was maintained at 4.3 by addition of 1N HCl and 1N NaOH. Thus, owing to the sensitivity of the organism pH excursions below 4.3 were not permitted.
Recovery of ethanol
The crude bioethanol in 1 L of fermentation broth was filtered by Whatman filter paper 1 with the subsequent concentration of the filtrate in a rotary vaccum evaporator (Buchi Rotavapor R-200, Switzerland). A 2 L round bottom evaporation flask was used to heat 1 L fermentation broth at 78.5°C for 3 h in a water bath (Buchi Heating Bath B-490). Finally, the pure ethanol in the distillate was collected and analysed by dichromate method  as described later.
The purification process efficiency of ethanol by rotary vaccum evaporator was calculated by the following equation,
Structural carbohydrates estimation
Cellulose, hemicellulose and lignin were determined by standardized methods of NREL, USA . 0.3 g of cellulosic substrate (leafy biomass) was mixed with 3 mL of 72% (v v-1) H2SO4 and incubated at 30°C for 1 h. Then, 84 mL of distilled water was added to bring down the concentration of H2SO4 to 4% (v v-1). This was further autoclaved at 121°C and 15 psi pressure for 1 h followed by vaccum filtration. The residue collected after filtration was weighed which is acid insoluble lignin. The pH of the collected filtrate was neutralized by addition of 1M CaCO3. Finally, the filtrate was assayed for reducing sugar which is glucose from where cellulose is calculated (1 g cellulose = 1.1 g of glucose). The remaining content was hemicellulose.
Measurement of cell growth
The cell growth during fermentation was estimated with the withdrawl of initial medium along with the pretreated substrate prior to inoculation as blank. Then, the fermentative microbe Z. mobilis was inoculated into the fermentation medium. With the advancement of SSF, the absorbance of the broth samples containing the substrate along with the microbial cells was measured against the above blank. The difference in absorbance (OD600nm) was measured as cell growth.

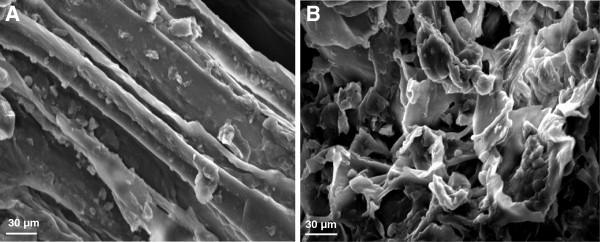

Field emission scanning electron microscopy (FESEM-Carl Zeiss, SIGMA VP instrument) was used for analyzing the destabilization of structural arrangements of thatch grass. 25 μL of the untreated and steam exploded thatch grass (0.05 g L-1) were placed over the glass slide, dried and coated with gold film using a SC7620"Mini", Polaron Sputter Coater, Quorum Technologies, Newhaven, England and the images were analyzed under the microscope.
FT-IR spectroscopy analysis
Fourier transform infrared (FT-IR) spectroscopy analysis of untreated and steam exploded thatch grass was carried out in FT-IR spectrometer (Spectrum Two, Perkin Elmer, USA). The samples were pelleted by dispersing 1 mg each of dried (45°C for 18 h) untreated and pretreated thatch grass with 3 mg of potassium bromide (Sigma, USA) in 1:3 ratio. Three replicate of the samples were prepared to increase the reproducibility of the analysis of samples. The samples were verified by 30 scans per sample in iteration with resolution 4 cm-1 and data interval 0.1 cm-1.
Enzyme assay with determination of protein content
The cellulase assay of Bacillus subtilis AS3 was carried out in 100 μL of reaction mixture containing 1.3% (w v-1) final concentration of CMC (65 μL of 2%, w v-1CMC) in 50 mM glycine NaOH buffer (pH 9.2) and 35 μL of cell free supernatant and incubated at 45°C for 10 min. One unit (U) of cellulase activity is defined as the amount of enzyme that liberates 1 μmole of reducing sugar (glucose) per min at 50°C. In case of crude recombinant GH5 and T. reesei, the cellulase assay was carried out by incubating the enzyme with CMC for 10 min at 50°C. The reaction mixture (100 μL) contained 10 μL of enzyme and 1.0% (w v-1) final concentration of CMC in 20 mM sodium acetate buffer (pH 4.3). The cellulase activity was measured by estimating the liberated reducing sugar employing Nelson Somogyi procedure [32, 33]. The absorbance was measured at 500 nm using a UV-visible spectrophotometer (Perkin Elmer, Model lambda-45) against a blank with D-glucose as standard. The protein concentration was determined by the Bradford method using bovine serum albumin (BSA) as standard  for all the three cellulases.
HPAEC analysis of cellulose hydrolyzed by recombinant cellulase
The monosaccharide released by enzymatic degradation of cellulose from steam exploded thatch grass (Hyparrhenia rufa) during bioreactor SSF was detected by high pressure anion exchange chromatography (HPAEC) using CARBOPACK™ PA-20 column (Dionex) following the method of Van Gool . The instrument (ICS-3000, Dionex) with a loop size of 25.0 μL and flow rate of 0.5 mL min-1 was maintained at 30°C throughout the study. The reducing sugars eluted by 100 mM NaOH were analyzed by pulsed amperometric detector (PAD) in tandem with Dionex (ICS-3000). The HPAEC profiles of the monosaccharide, glucose released by recombinant cellulase (GH5) from complex cellulose were studied at 0, 18, 36, 54, 72 and 96 h. The monosaccharides, arabinose, glucose and xylose (1.2 mg mL-1 final concentration of each sugar in the standard mixture) were employed as standards. The centrifugation of the crude sample (200 μL) diluted with ultrapure water (400 μL) was carried out (15,493g, 25°C and 15 min). The supernatant (500 μL) filtered through 0.2 μm membrane was consequently injected into HPAEC-PAD. The retention time for standard monosaccharide sugars used were arabinose (3.71 min), glucose (4.23 min) and xylose (4.98 min), respectively as shown in Figure 6A.
Gas chromatographic and dichromate analysis of ethanol
A flame ionization detector (GC-FID, Varian 450) along with Porapaq column (Hayesep) Q (3.0 m × 2.0 mm i.d., 80–100 mesh, manufactured by Varian) was employed to perform the gas chromatographic analysis of ethanol . The carrier gas used was nitrogen at a constant flow rate of 55 cm3 min-1. The oven temperature was kept at 150°C for 20 minutes isothermally. The injection volume used for analysis was 1 μL along with the injector and detector temperature maintained at 170°C.
For ethanol content estimation, dichromate method was also castoff where ethanol produced was converted to acid by reaction with dichromate . The cell free culture was diluted 10 times (reaction volume 10 mL) to which 2 mL of K2Cr2O7 (3.37 g 100 mL-1) was added and absorbance was measured at 600 nm.
Separate hydrolysis and fermentation
Simultaneous saccharification and fermentation
- H. rufa:
- T. reesei:
- B. subtilis:
- C. thermocellum:
Glycoside hydrolase family 5
- Z. moblilis:
- g L-1:
Gram per litre
Fourier transform infrared spectroscopy
Specific growth rate
High pressure anion exchange chromatography- pulsed amperometric detector
Optical density at 600 nm
- Yield of ethanol (g g-1):
Yield of ethanol (gram of ethanol gram of substrate-1).
