Immobilization of commercial inulinase on alginate–chitosan beads

  • Juliano Missau1,
  • Amir J Scheid1,
  • Edson L Foletto1,
  • Sergio L Jahn1,
  • Marcio A Mazutti1 and
  • Raquel C Kuhn1Email author
Sustainable Chemical Processes20142:13

DOI: 10.1186/2043-7129-2-13

Received: 27 December 2013

Accepted: 19 May 2014

Published: 27 May 2014

Abstract

The commercial inulinase obtained from Aspergillus niger was effectively immobilized on alginate-chitosan beads which were hardened with glutaraldehyde. The immobilization conditions were studied using Plackett & Burmann experimental design and central composite rotational design (CCRD). The effects of chitosan, glutaraldehyde, sodium alginate and calcium chloride concentrations in order to obtain a better immobilization yield were optimized. In the Plackett & Burman experimental design, the sodium alginate and calcium chloride had a significant effect (p < 0.1), but only the calcium chloride showed a positive effect, indicating that as higher the concentration, better is the immobilization yield. In the central composite rotational design (CCRD), the best results were obtained in the central point, using sodium alginate (1% w/v) and calcium chloride (4% w/v) as conditions for inulinase immobilization. By the CCRD, the optimal immobilization strategy was: chitosan (0.1% w/v), glutaraldehyde (0.1% v/v), sodium alginate (1% w/v) and calcium chloride (4% w/v). In this condition, the enzyme loading capacity was 668 U/g gel beads and the effect of temperature on the immobilized enzyme activity was also evaluated, showing better activity at 50°C. The immobilized enzyme maintained 76% of its activity in six days at room temperature.

Keywords

Inulinase Immobilization Glutaraldehyde Chitosan Experimental design

Introduction

Inulinases are enzymes potentially useful on the production of high fructose syrups (HFS) by enzymatic hydrolysis of inulin, conducting to a yield of 95% [1]. Inulinases are enzymes widely used for the production of fructooligosaccharides, compounds with functional and nutritional properties for use in low-calorie diets, stimulation of Bifidus and as a source of dietary fiber in food preparations [2].

Enzyme immobilization increases the catalytic properties of enzyme, allow the continuous reuses of costly enzyme to make it economically viable for industrial applications [3, 4]. The enzymes immobilization is usually carried out by three methods: covalent binding to a supports, adsorption of enzyme molecules on a support material and entrapment or encapsulation of enzyme in polymers. The covalent binding and adsorption methods both have disadvantages because they have possibility to affect the substrate binding site of enzyme and enforce diffusion limitation on the enzyme which ultimately causes the decrease in enzyme activity [4]. Entrapment is one step process in which chances of activity lost is comparatively low. Polymers such as alginate were used for entrapment of enzymes [4, 5].

Calcium alginate hydrogel beads are commonly used carriers in the entrapment immobilization of biocatalyst [5] owing to their significant advantages such low cost, high porosity, and simplicity of preparation, however, this material has some limitations these are due to biocompatibility, including high biomolecule leakage, and large pore size [5, 6]. For the encapsulation efficiency and control release of enzyme from the gel matrix, the covalent cross-linking with polymers, such as chitosan, and coating the surface of alginate gel beads with other reagents, such as glutaraldehyde, have been used [5].

This study was based on immobilization of commercial inulinase from Aspergillus niger within alginate–chitosan beads. In order to obtain a better immobilization yield, the immobilization parameters such as chitosan, glutaraldehyde, sodium alginate and calcium chloride concentrations were optimized. The Plackett & Burman and central composite rotational design (CCRD) were employed to evaluate the effects of immobilization parameters. Thermal and storage stabilities were also evaluated in this work.

Material and methods

Material

The commercial inulinase was purchased from Sigma–Aldrich, which was obtained from Aspergillus niger (Fructozyme, exo-inulinase EC 3.2.1.80 and endo-inulinase EC 3.2.1.7). The chitosan was purchased from Purifarma (Brazil) and others reagents from Vetec (Brazil).

Enzyme immobilization

For the inulinase immobilization protocol, a methodology adapted from Zhou et al. [5] was used: alginate was dissolved in water and the equal volume inulinase enzyme solution (1:100, enzyme:acetate buffer) was added by mild shaking on a rotary shaker. Chitosan was ultrasonically dispersed in an acetic acid solution (5% v/v) for 1 h and CaCl2 solution was added. Alginate/inulinase mixture was extruded dropwise through a peristaltic pump into a 50 mL chitosan/CaCl2 solution and hardened in this solution. The formed spherical beads were rinsed with sterile NaCl solution (0.9% w/v) (2 × 20 mL) and then treated with glutaraldehyde solution for 2 h. The immobilized inulinase was washed thrice with sterile distilled water and then directly used for the measurements of activity and stability.

Inulinase activity assay

An aliquot of 0.5 g of the enzyme was incubated with 4.5 mL sucrose solution (2% w/v) in sodium acetate buffer (0.1 M, pH 4.8) at 50°C. Reducing sugars released were measured by the 3.5-dinitrosalicylic acid method [7]. A separate blank was set up for each sample to correct the non-enzymatic release of sugars. One unit of inulinase activity was defined as the amount of enzyme necessary to hydrolyze 1 μmol of sucrose per minute under the mentioned conditions (sucrose as a substrate). Results were expressed in terms of inulinase activity (enzyme loading) per gram of gel beads (U/g).

At each step, the pellets were washed with distilled water to remove the excess of glutaraldehyde and unbound enzyme. The immobilization yield (Y%) was determined as defined in the Equation 1:
Y % = activity immobilization enzyme activity free enzyme × 100
(1)

The amount of protein loaded on the support was calculated from the difference of initially added protein to the protein obtained in the washing plus supernatant. The protein content was determined by Biuret method using bovine serum albumin as a standard [8].

The immobilization efficiency was defined in the Equation 2:
E % = specific activity bound to the support specific activity initially added × 100
(2)

Experimental design

The effects of chitosan (0.1-0.4% w/v), glutaraldehyde (0.1-0.9% v/v), sodium alginate (1-5% w/v) and calcium chloride (1-3% w/v) were assessed by means a Plackett & Burman for four independent variables. Table 1 presents the range of investigated variables. The significance variables in the Plackett & Burman were studied in the central composite rotational design (CCRD). All the results were analyzed using the software Statistica® 8.0 (Statsoft Inc., Tulsa, USA).
Table 1

Matrix of Plackett & Burman experimental design

Independent variables

Coded levels of variables

-1

0

+1

Chitosan (%)

0.1

0.25

0.4

Glutaraldehyde (%)

0.1

0.50

0.9

Sodium alginate (%)

1

3

5

CaCl2 (%)

1

2

3

Thermal stability

The stability was determined by incubation of immobilized enzyme in 0.1 M acetate buffer (pH 4.8) without substrate at 30, 50 and 70°C. Samples were taken at different intervals during 4 hours and the inulinase activity was determined. The relative activity at each temperature was determined by taking the activity at 0 min as 100%.

Shelf stability

The shelf stability was determined by incubation of immobilized enzyme in 0.1 M acetate buffer (pH 4.8) without substrate at room temperature (25°C). Samples were taken at different intervals and the inulinase activity was determined. The relative activity at each temperature was determined by taking the activity at 0 min as 100%.

Results and discussion

Plackett & burman

In large-scale processes, the enzyme can be immobilized and the process cost is very important. Therefore, the conditions for the inulinase immobilization were studied in this work. The enzyme immobilization on alginate beads is not only inexpensive, but also used in mild conditions [5]. So, the sodium alginate has been considered for the entrapment of enzymes due many advantages [5].

In the preliminary experiments, the main variables (chitosan, glutaraldehyde, calcium chloride, sodium alginate) that could influence on the immobilization yield were studied through Plackett & Burman experimental design for the optimization of inulinase immobilization. Table 2 and Pareto Chart (Figure 1) showed that only the sodium alginate and calcium chloride had a significant effect at 90% of confidence (p < 0.1) on the inulinase immobilization yield. The sodium alginate had a negative effect, meaning that as lower the sodium alginate concentration, better is the immobilization yield. On the other hand, the calcium chloride showed a positive effect, indicating that as higher the concentration, better is the immobilization yield. The chitosan and glutaraldehyde were not statistically significant within the levels studied.
Table 2

Effects of Plackett & Burman experimental design for immobilization yield



Effects

Error

t(6)

p-value

Mean

27.125

0.896

30.261

<0.0000008

Chitosan (%)

3.858

2.102

1.835

0.1161

Glutaraldehyde (%)

1.851

2.102

0.881

0.4124

Sodium alginate (%)

-7.531

2.102

-3.582

0.01161

Calcium chloride (%)

6.637

2.102

3.157

0.01963

https://static-content.springer.com/image/art%3A10.1186%2F2043-7129-2-13/MediaObjects/40508_2013_Article_30_Fig1_HTML.jpg
Figure 1

Pareto Chart for the variables independents in the Plackett & Burman experimental design.

Considering the Plackett & Burman experimental design results, an additional set of experiments were carried out according to a central composite rotational design (CCRD) in order to find the optimal conditions for the inulinase immobilization. The variables real and coded were presented in the Table 3. The variables chitosan and glutaraldehyde were fixed at 0.1% in the central composite rotational design.
Table 3

Results of inulinase immobilization using central composite rotational design

Assays

Sodium alginate

Calcium chloride

Y(%)

1

-1(0.5)

-1(3)

13.58

2

-1(0.5)

+1(5)

25.52

3

+1(1.5)

-1(3)

22.11

4

+1(1.5)

+1(5)

30.73

5

0(1)

-1.41(2.6)

25.34

6

0(1)

+1.41(5.4)

24.45

7

-1.41(0.3)

0(4)

11.11

8

+1.41(1.7)

0(4)

18.10

9

0(1)

0(4)

36.38

10

0(1)

0(4)

39.48

11

0(1)

0(4)

36.63

The glutaraldehyde cross-links enzyme and gelatin forming an insoluble structure. Glutaraldehyde treatment also stabilizes the alginate gel, helping in the prevention of the leakage of enzymes [9]. In this work, it was used to maintain the stable beads. At the concentration studied, the glutaraldehyde showed no significant influence on the response, but according to the results, it was possible to conclude that the glutaraldehyde is especially important for the stability of the enzyme, even at low concentrations studied (0.1% v/v).

Central composite rotational design (22)

The better results concerning the CCRD were obtained in the central point (Table 3). According to these results, the best conditions for the inulinase immobilization yield were observed using sodium alginate (1% w/v) and calcium chloride (4% w/v). The effect of calcium chloride concentration is important to secure stable calcium alginate beads with maximum immobilization yield [4].

The enzyme immobilization presented activity values lower than those obtained for the free enzyme. Cheirsilp et al. [10] and Zhou et al. [5] reported a decrease of enzyme activity in immobilized alginate beads, similar to the observed in this work. The decrease in the immobilized enzyme activity could be explained due to diffusional limits, steric effects, structural changes in the enzyme occurring upon covalent coupling, or lowered accessibility of substrate to the active site of the immobilized enzyme [11].

The enzyme loading capacity i.e., enzyme per gram of gel beads, was 668 U/g in the best condition of the CCRD. Danial et al. [12] obtained 530 U/g and 336 U/g gel using one and two-step method on grafted alginate, respectively. The crude inulinase was assayed for its activity and protein content, the specific activity was calculated according Eq. 2 and was 66%.

The results obtained in the central composite rotational design were used to build the quadratic models expressing the inulinase immobilization yield as functions of the independent variables.

Based on statistical analysis of model parameters, one empirical model was presented below (Eq. 3). Coded model (Eq. 3) was used to generate response surface (Figure 2) for the analysis of the variables effects on the immobilization. It presents the significant terms (p < 0.05) concerning of inulinase immobilization yield and it was validated by analysis of variance (ANOVA), which was presented in Table 4. According to the ANOVA analysis of the immobilization, the calculated F was about 2.9 times greater than the tabulated ones and the determination coefficient was 0.76. The high values for the determination coefficient indicate good fitting of experimental data, allowing the use of such models to predict process performance. For the biotechnological process, this determination coefficient is acceptable because of the high variability in the bioprocess.
https://static-content.springer.com/image/art%3A10.1186%2F2043-7129-2-13/MediaObjects/40508_2013_Article_30_Fig2_HTML.jpg
Figure 2

Response surface for the inulinase immobilization according to the central composite rotational design.

Table 4

ANOVA for inulinase immobilization



SS

df

MS

F

R2

Regression

672.26

2

336.13

12.88

76.3

Residual

208.65

8

26.08

Total

880.91

10



F0.05; 2; 8 = 4.46.

Y % = 37.48 - 5.49 X 1 2 10.66 X 2 2
(3)

Where X1 is the sodium alginate and X2 is the calcium chloride.

The validated model was used to optimize the process using the tool response/desirability profiling of Statistica 8.0. The desirability function allows the response surface produced be inspected by fitting the observed responses using the above mentioned equation based on levels of the independent variables. This equation was used to predict values for response (inulinase immobilization yield) at different combinations of levels of the independent variables, specify desirability functions for the dependent variables, and to search for the levels of the independent variables that produce the most desirable responses for the dependent variables (immobilization yield) [13].

Thermal and shelf stabilities

The optimum temperature of immobilized enzyme was 50°C. According to Figure 3, it is clear that in the temperature of 50°C the relative activity of immobilized enzyme was considerably higher compared with other temperatures studied (30 and 70°C). Rocha et al. [14] achieved maximum activities for immobilized inulinase onto Amberlite IRC 50 at 50°C. Danial et al. [12] and Yewale et al. [15] found 60°C as the best temperature for the immobilized inulinase on grafted alginate and chitosan, respectively. Richeti et al. [16] observed optimum values for immobilization at 55°C. In this work, in the temperature of 70°C was observed that beads did not maintain the structure and weakened. The results revealed that at 50°C and after 4 hours the immobilized enzyme activity retained 86.5% of its activity.The data shown in Figure 4 indicated that the immobilized enzyme retained over 76% of its activity in six days at room temperature. However, this storage stability could be improved at lower temperatures, e.g. 4–5°C. The immobilized enzyme lost practically all of its activity at room temperature after 20 days; the relative activity was 20%.In the Figure 5 was observed that the temperature of 50°C maintained 100% of relative activity during 120 minutes, and at 30°C and 70°C around 80% and 50% of relative activity was maintained, respectively.
https://static-content.springer.com/image/art%3A10.1186%2F2043-7129-2-13/MediaObjects/40508_2013_Article_30_Fig3_HTML.jpg

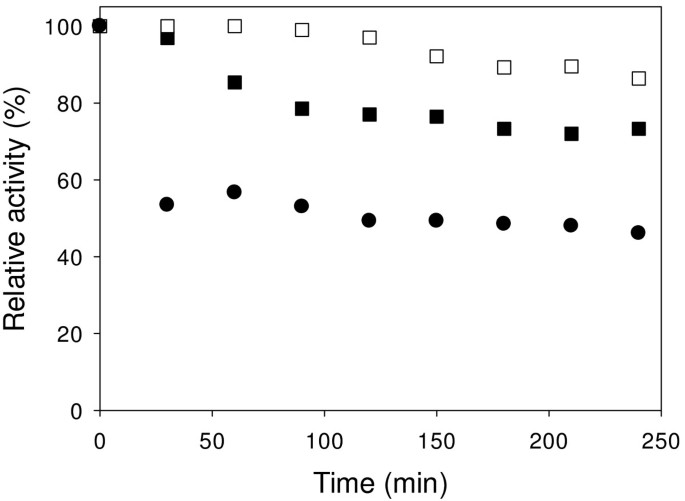

Figure 3

Thermal stability of immobilized enzyme ((■) 30°C, () 50°C and () 70°C).

https://static-content.springer.com/image/art%3A10.1186%2F2043-7129-2-13/MediaObjects/40508_2013_Article_30_Fig4_HTML.jpg
Figure 4

Shelf stability of immobilized inulinase during storage at room temperature.

https://static-content.springer.com/image/art%3A10.1186%2F2043-7129-2-13/MediaObjects/40508_2013_Article_30_Fig5_HTML.jpg

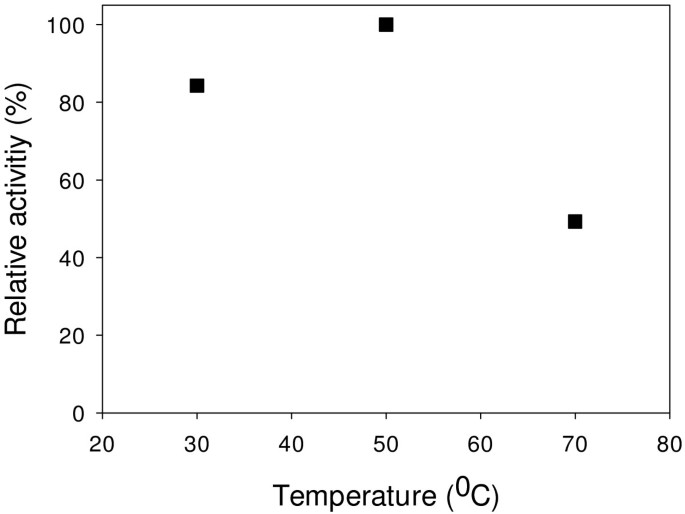

Figure 5

The effect of temperature on enzyme activity.

Conclusion

Inulinase immobilization could be carried out successfully using alginate-chitosan beads hardened with glutaraldehyde. By the Plackett & Burman experimental design only the variables sodium alginate and calcium chloride presented significant effect (p < 0.1). In the CCRD the optimal immobilization strategy was: chitosan (0.1% w/v), glutaraldehyde (0.1% v/v), sodium alginate (1% w/v) and calcium chloride (4% w/v). In this condition, the optimum temperature in the thermal stability studied was 50°C and the inulinase immobilization retained 86.5% of the relative activity during 240 minutes. The enzyme loading capacity was 668 U/g gel beads, which could be indicating that the inulinase immobilization on the alginate-chitosan beads is a promising technique.
